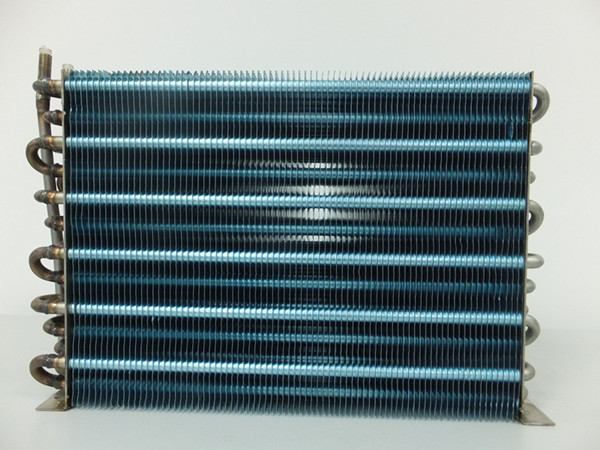

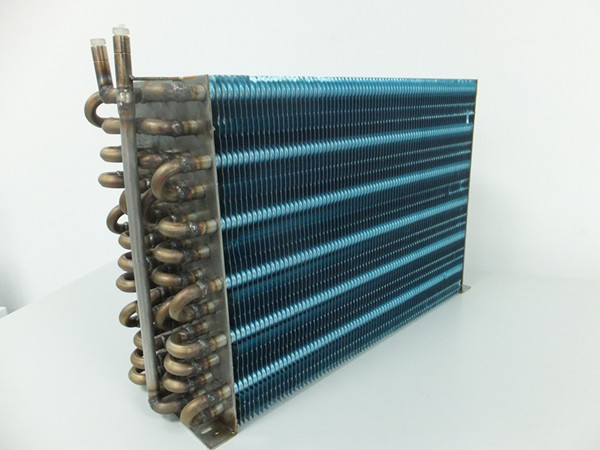

Stainless Steel Tube With Blue Fin Heat Exchanger

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

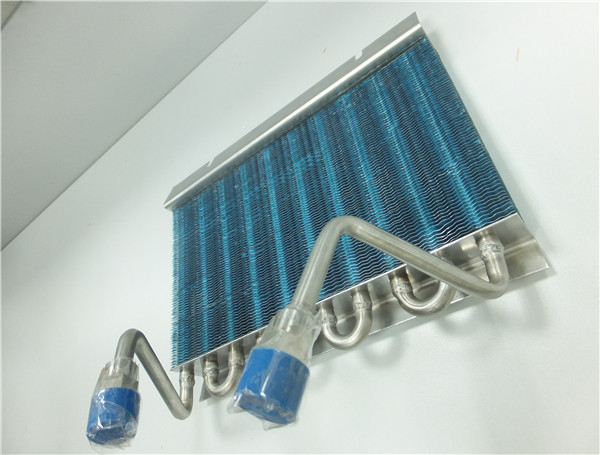

Stainless Steel Tube with Blue Fin Heat Exchanger use for dairy, food, chemicals & pharma

CONSTRUCTION

Tubes

Stainless steel tube AISI-316 or 304, specially manufactured for the coil's construction with thickness from 0,5mm to 1mm.

Fins

Corrugated fins with auto-separation collar, covering all the tube surface maximising the global inter change and adjusting the fin's

spacing (from 1,8 mm to 12 mm). These can be manufactured in aluminium, pre-coated aluminium, copper or stainless steel.

All these materials can be coated by the electrophoresis treatment for corrosive ambient.

Casing

This is built from galvanized steel, aluminium or stainless steel. The structure is totally riveted between the frames, top and bottom
sides, this gives a rigid and compact coil.

The perforations for the accommodation tubes are with protection collars for avoiding fractures.

Headers

The headers are manufactured totally in stainless steel. For direct expansion coils, the distributors and capillary are also in stainless steel.

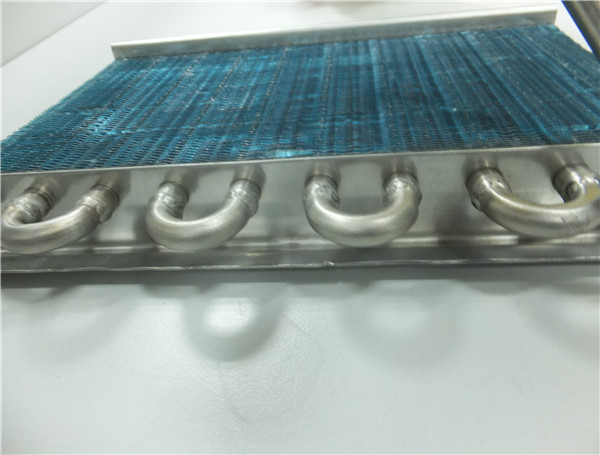

Welding

TIG, without any material addition; this guarantee the circuit hold back and the perfect welding.

Test

The pressure testing is made to all coils, with dried air at 38kg/cm2 and submerged in a water to verify are not leakages.
All coils evaporators and condensers are charged with pressure and provided with a shell for verifying in the reception.
A quality stamp certufy the test and hold back of each coil and allow the perfect draw up of the product assigned reference number and manufacturing.

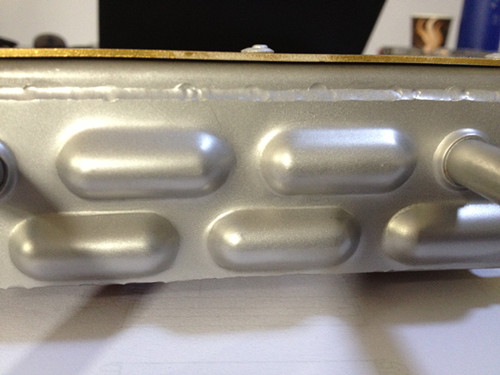

Welding surface can be sandblasted

Argon-arc welding:TIG

About Shenglin:

Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.

Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.

In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.

Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.

Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
